EI Type Transformer

Date: 2014-09-30
Browse volume: 3390

Order Hotline：020-86872678

Details

EI laminated transformer is a traditional transformer, construction is simply. The EI laminated,bobbin, bracket and other

components are already produced as mass production. So that the production is simple and standard, and the costing is lower. It is widely used in various electronic and industrial equipment.

Main advantages:

Low costing

Easy assembly

The power can make less than 5VA, and the costing is much lower than toroidal

Can proteced with resettable thermal fuse or non-resettable thermal fuse

Applications:

Audio & Vedio Amplifier

AC to AC Power Supply

Electronic Equipment

Lighting

Sample Lead Time： 4~7 days

Production Lead Time：7~35 days (Special case can negotiate)

Quantity：No MOQ Require

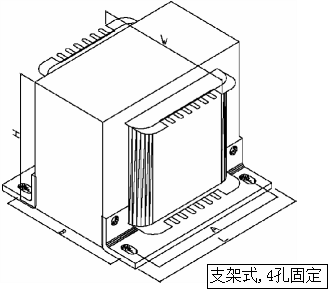

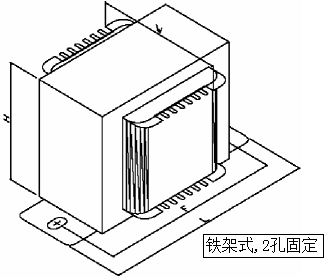

a) bracket I (L x W x H x F) b) bracket II (L x W x H x A x B)

power	Regulation	Temp. Rise	Bobbin	Dimension(mm)
power	Regulation	Temp. Rise	Bobbin	L	W	H	F/A×B
10VA	18%	60℃	48-18	50	34	44	61
12VA	18%	60℃	48-20	50	36	44	61
15VA	16%	60℃	48-24	50	40	44	61
20VA	16%	60℃	48-30	50	46	44	61
25VA	13%	60℃	57-20	59.5	44	50.5	70.5
30VA	13%	60℃	57-24.5	59.5	48.5	50.5	70.5
35VA	13%	60℃	57-30	59.5	54	50.5	70.5
40VA	11%	60℃	57-35	59.5	59	50.5	70.5
44VA	10%	60℃	66-24	68.5	52	58.5	81.5
55VA	10%	60℃	66-30	68.5	58	58.5	81.5
60VA	9%	60℃	66-36	68.5	64	58.5	81.5
65VA	9.0%	60℃	66-40	68.5	68	58.5	81.5
70VA	9%	60℃	66-45	68.5	71	58.5	81.5
80VA	8%	60℃	76-32	78.5	62	68.5	90
100VA	8%	60℃	76-38	78.5	68	68.5	90
120VA	7%	60℃	76-45	78.5	75	68.5	90

135VA	7%	60℃	76-50	78.5	80	68.5	90
140VA	7%	60℃	86-38	86.2	72	72	71×63
145VA	7%	60℃	86-42	86.2	76	72	71×67
155VA	6.8%	60℃	86-45	86.2	79	72	71×70
170VA	6.5%	60℃	86-50	86.2	84	72	71×75
155VA(1)	6.5%	60℃	96-32	96	69	80.5	76×55
180VA	6.5%	60℃	96-38	96	75	80.5	76×61
210VA	6.4%	60℃	96-45	96	82	80.5	76×68
230VA	6.4%	60℃	96-50	96	87	80.5	76×73
265VA	6.4%	60℃	96-60	96	97	80.5	76×83
230VA(1)	6.4%	65℃	105-34	105	73	91	76×52
270VA	6%	65℃	105-40	105	79	91	76×58
340VA	5.6%	65℃	105-50	105	89	91	76×68
370VA	5.2%	65℃	105-55	105	94	91	76×73
400VA	4.8%	65℃	105-60	105	99	91	76×78
430VA	4.7%	65℃	105-65	105	104	91	76×81
400VA	5.2%	65℃	114-45	114	89	97.5	95×75
430VA	5.2%	65℃	114-50	114	94	97.5	95×80
480VA	5.0%	65℃	114-55	114	99	97.5	95×85
520VA	4.6%	65℃	114-60	114	104	97.5	95×90
560VA	4.5%	65℃	114-65	114	109	97.5	95×95
670VA	4.6%	70℃	130-50	136	115	114	125×86
730VA	4.5%	70℃	133-55	136	128	114	125×91
800VA	4.4%	70℃	133-60	136	125	144	125×96
870VA	4.2%	70℃	133-65	136	129	144	125×101
930VA	4.1%	70℃	133-70	136	135	144	125×106
1000VA	4%	70℃	133-75	136	141	144	125×111
1070VA	3.8%	70℃	133-80	136	144	144	125×116
1200VA	3.7%	70℃	133-90	136	154	144	125×127

☆1. The product parameters at 25 ℃ ambient temperature test.
2. The product can work normally under the variation of 13% of the power grid voltage.
3. The electrical performance and size of the product are for reference only, and can also be designed according to customer requirements.
4. All materials of the product are of classA or above temperature resistance level.
5. The products comply with ROHS environmental instructions.
6. The products can be designed according to customers' requirements and meet safety standards such as UL, CE, CQC and ENEC.
